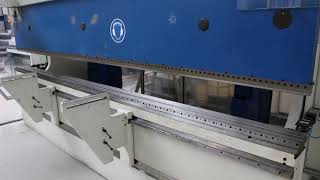

مكبس ثني Trumpf TRUMABEND V 170

pressure 170 t
chamfer lenght 4080 mm
distance between columns 3680 mm
column arm 410 mm
dayligth 385 mm
stroke 215 mm
ajustment speed 200 mm/sec
working feed 1-10 mm/sec
return speed 135 mm/sec
table width 200 mm
table height 1050 mm
Number of working hours 25.430 h
oil volume 350 l
total power requirement 29 KVA
weight of the machine ca. 16.450 kg.
range L-W-H 4620 x 2210 x 2885 mm
** Machine in good condition
** Regularly serviced by the manufacturer
** CNC backgauge with 8 axes (!!)

- in checked conditions - machinevideo -
إظهار قائمة الأسماء

Equipment:
- CNC electro-hydraulic press brake/die bending press
- DELEM CNC control - swiveling front left
* High-resolution graphic screen
* Clear, concise menus in the operator's language
* Large tool and product library
* Graphic 2D programming
* Automatic bend sequence calculation and collision detection
* Emergency stop button at front
- CNC axis adjustment:
* Y1 - Y2 - X1 - X2 - R1 - R2 - Z1 - Z2 axis + CNC crowning
- X axis - adjustment speed: 500 mm/sec.
* Max. stop range: 860 mm
- R axis - Adjustment speed: 300 mm/sec.
* Max. travel: 250 mm
- Z axis - Adjustment speed: 1000 mm/sec.
* Max. travel: 3260 mm
- CNC electric motor table crowning
- CNC electro-pneumatic die shift (I axis)
- WILA / TRUMPF upper tool clamping - hydraulic
- WILA / TRUMPF lower tool clamping - hydraulic
- 2x front, robust support arms - movable
- 1x freely movable 2-hand/foot control
- 1x freely movable foot switch
- Side safety device (swivel doors)
- Rear safety device (sliding doors)
- Original operating instructions
