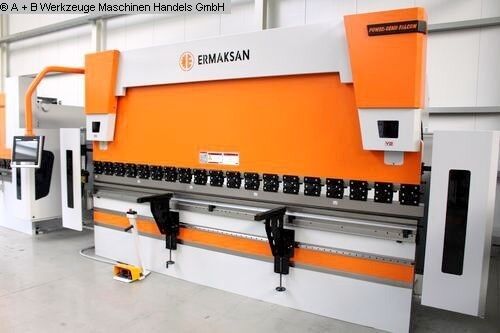

جديد مكبس ثني Ermak POWER BEND PRO 37.220

pressure 220 t
chamfer lenght 3760 mm
distance between columns 3250 mm
column arm 410 mm
ram stroke speed 180 mm/sec
work speed 10.0 mm/sec
return speed 160 mm/sec
work stroke 275 mm
dayligth 550 mm
table height 900 mm
table width 160 mm
oil volume 300 ltr.
voltage 400 Volt
total power requirement 18.5 kW
weight 12906 kg
range L-W-H 5100 x 2250 x 2900 mm

--------------------------------------------------
Press brake with special equipment
* increased installation height
* increased cylinder stroke
* as well as increased bending beam speeds
--------------------------------------------------

Furnishing:
- DELEM CNC control model DA 58T (TouchScreen)
- Motorized backgauge with R-axis, on recirculating ball spindles
- X = 800 mm R = 250 mm with 2 stop fingers
- controlled axes Y1 - Y2 - X - R - C (crowning)
- electr. Crowning controlled by CNC
- Upper deer foot tool with PS 135.85-R08, system "A" with quick-change clamp
- Additional crowning device in the tool holder of the upper tool
- Universal die block
- BOSCH / HOERBIGER hydr. Components
- SIEMENS electrical system
- LEUZE light barrier behind the machine
- FIESSLER AKAS laser with FPSC protective device v.d. machine
- Swiveling control panel, mounted on the left
- 2x front support arms "sliding system", with T-slot and tilting cam
- 1x double foot control
- CE mark / declaration of conformity
- User manual: machine and control in German
- Safety manual: press brakes
