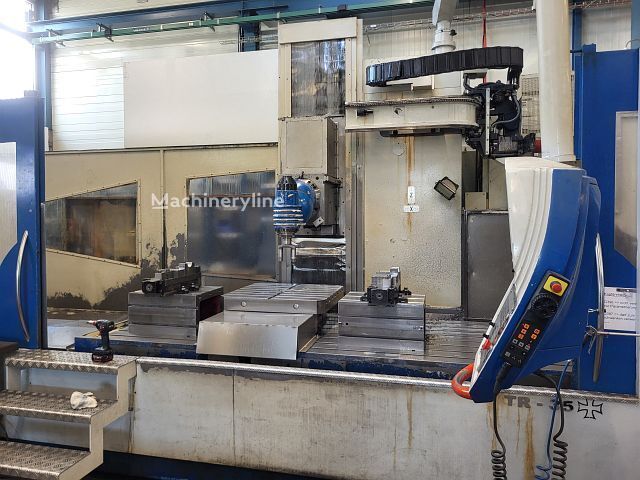

مركز الميكنة متعددة الوظائف Soraluce TR 35

- Includes complete tooling
- The machine does not have an internal cooling system.
- The table (centered) remains in place -> can be deselected and completely removed.
- The left and right clamping cubes are not included.




- Includes complete tooling
- The machine does not have an internal cooling system.
- The table (centered) remains in place -> can be deselected and completely removed.
- The left and right clamping cubes are not included.


basic design
basic design: bed type
Working Range -cubic-
number of processing axes (excl parallel axes): 5
.. among of them simultaneous CNC axes: 3
X-axis travel: 3500 mm
Y-axis travel: 1200 mm
Z-axis travel: 1400 mm
Table
workpiece load (max): 4000 kg
- mode of operation: automatic
spindle / head
- positioning/indexing: 2.5 °
- positioning/indexing: 2.5 °
spindle revolutions (max): 4000 /min
tool fixture: ISO SK 50
Axis drives
rapid traverse: 20000 mm/min
Tool magazine
magazin type: chain magazine
number of positions: 30
Electrical specifications
mains voltage: 400 V
mains frequency: 50 Hz
Dimensions / weights
space requirements -left/right-: 13500 mm
space requirements -front/back-: 5000 mm
total height: 3850 mm
total weight approx.: 24000 kg
attachments
angular milling head: yes
guideway covers: yes
chip conveyor: yes
through spindle coolant attachment: no
