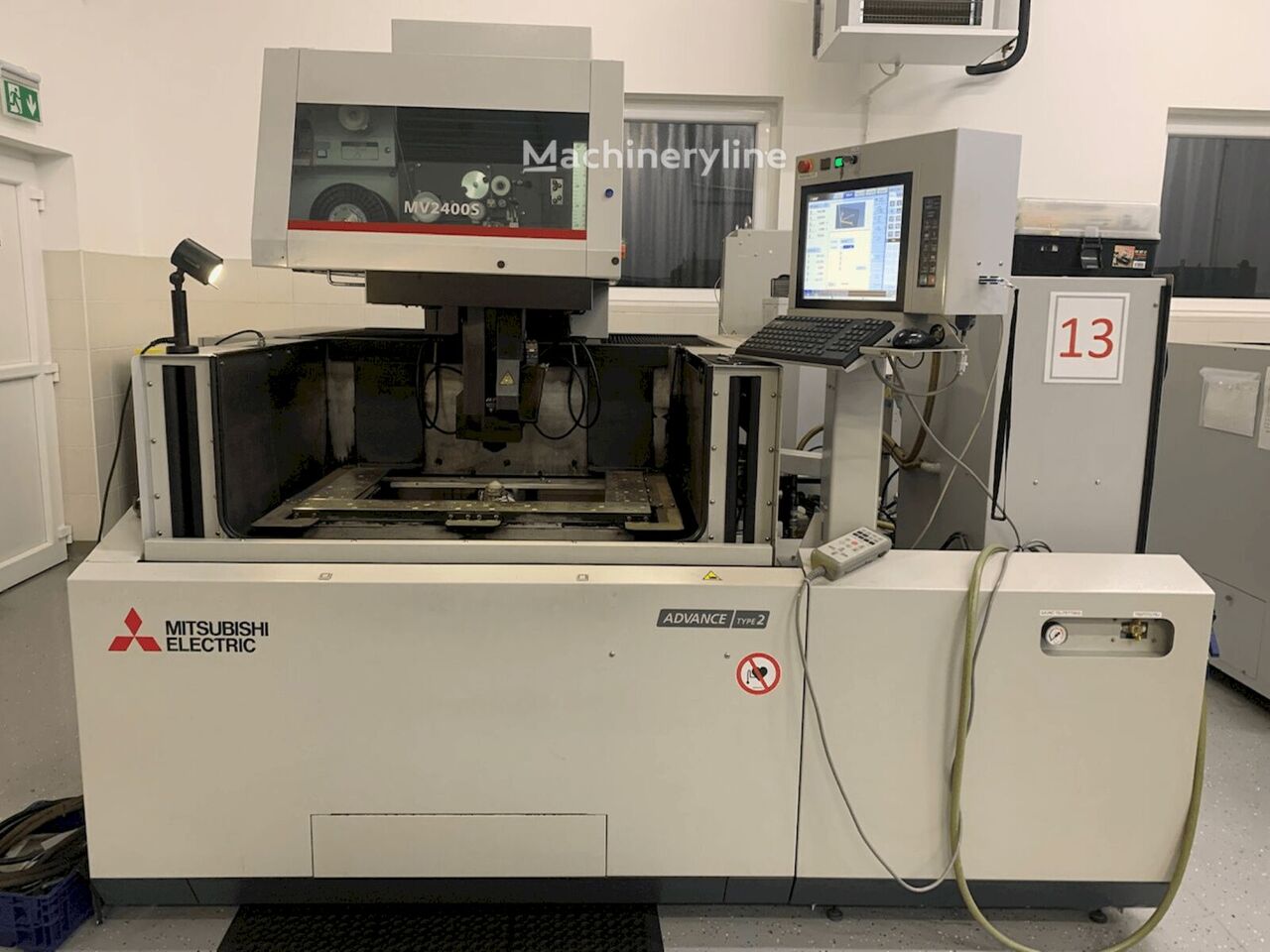

ماكينة تفريغ الشحنات الكهربائية الساكنة Mitsubishi MV2400S

This 5-axis Mitsubishi MV2400S wire EDM machine was manufactured in 2015. It features X, Y, Z movements of 600 x 400 x 310 mm and U, V axes at 150 x 150 mm, supporting a maximum workpiece weight of 1,500 kg. Equipped with an advanced Mitsubishi M700 controller with 3D CAD/CAM capabilities, it ensures precise machining. Consider the opportunity to buy this Mitsubishi MV2400S wire EDM machine. Contact us for more information about this machine.
Additional equipment
Cooling/Temperature Control: Cooling system with temperature regulation
Generator: Transistor pulse generator
Output Current: 50 A
Generator Size: 600 x 650 x 1765 mm
Generator Size: 600 x 650 x 1765 mm
Machine Benefits
Technical Machine Benefits
Maximum machining angles / height: 15° / 260 mm
Maximum workpiece size: 1050 x 820 x 305 mm
U-shaped table dimensions (w x d): 840 x 560 mm
M8 mounting holes: 52
Wire diameter: 0. 1 – 0. 3 mm
Wire coil weight: 10 kg
Automatic wire threading and wire cutting: included
Tank capacity: 860 liters
Filter rating: 3 µm
Filter system: dual system // filter system weight: 350 kg
Extra Information

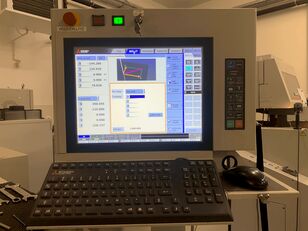

Controller
Inputs: Keyboard, USB, Memory Stick, Ethernet
Display: 15" TFT Touchscreen
Positioning Accuracy: 0.1 µm
Minimum Incremental Movement: 0.05 µm
Maximum Programmable Size: ± 99999999 mm
Software: ADVANCE Plus with 3D CAD/CAM, 10 GB Memory, and Clear/Intuitive Layout
Remote Communication Ready: mcAnywhere
Graphical Views: 3D, Front, Side, Top

Machine Benefits
ODS Optical Drive System
Tubular Direct Drives on X, Y Axes
Linear Scales on X, Y Axes
Intelligent Automatic Wire Threading System
Dry and Underwater Operation Capable
Wire Straightening System
Automatic Hole Detection
3D CAD/CAM Control System
5 Controlled Axes + Prepared for Additional Axes
Precise Finish Circuit (PFC) Machining
Long Life System (LLS) Design
U-Shaped Hardened Segmented Clamping Table
Compressed Dielectric (Water) Cooling System
Remote Communication Ready (mcAnywhere)
CE Version
30°/45° Wire Cutting Capability
E.KO Ionizer 1501
application type: EDM
Location: Hungary
machine type: Wire EDM Machine
Machine Depth: 2687 mm
Number of Axes: 5
